| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"--8" |
| Minimum Order Quantity: | 1000PCS |
| Price: | 0.1-8USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS |
| Surface: | Galvanized | Grade: | Q345, Q235, 20#, 10#, Q195 |
|---|---|---|---|
| Length: | 1-12m Customer Size Is Ok | Technique: | Hot Rolled,ERW |
| Application: | Oil ,Gas ,Water | Section Shape: | Round |
| Highlight: | erw carbon steel pipe,black steel nipple |
||

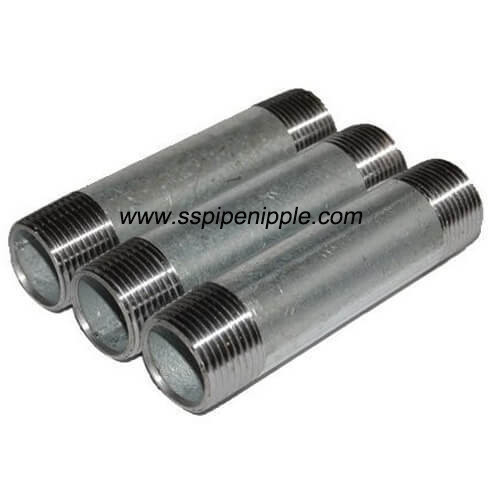

Schedule 40 Welded Steel Pipe Nipples - Galvanized
Descreption
| Niple GALVANIZADO | |||||||
| Extremos roscados cumplen con ANSI/SEME B1.20.1 | |||||||
| Longitudes cumplen con ASTM A733 | |||||||
| Material cumple con ASTM A53 | |||||||
| Concidad 1.5 grados | |||||||
| La Longitud de la rosca varia en los niples de rosca corrida |
| Material: | carbon & stainless steel |
| material type: | welded or seamless steel pipes |
| Standard: | ASTM A53/ ASTM A106/ ASTM A333/ BS1387/ DIN2440, Medium&heavy |
| Threads: | ANSI B1.20.1; ISO 7/1; DIN2999 |
| Techonology: | machining |
| Type: | nipple |
| Size: | 1/8"-4" |
| Wall thickness: | SCH40.80.160.XXS |
| Treatment: | anti-rust oil |
| Color: | black, galvanized |
| Packing: | in cartons then on pallets |
| Certificates: | ISO9001:2008 |
| Application: | Steam,Air,Gas and Oil pipes or for many other fluids |
| NORMA ANSI B1.20.1 ROSCADO | |||||
| PASO (HILOS POR PULG.) | No. HILOS (D) | GAGES | |||
| DIÁMETRO DEL TUBO | |||||
| MIN. | NOM. | MAX. | HILOS | ||
| 1/8 ” | 27 | 9.6 | 10.6 | 11.6 | +/- 1 |
| 1/4 ” | 18 | 9.7 | 10.7 | 11.7 | +/- 1 |
| 3/8 ” | 18 | 9.8 | 10.8 | 11.8 | +/- 1 |
| 1/2 ” | 14 | 9.9 | 10.9 | 11.9 | +/- 1 |
| 3/4 ” | 14 | 10.1 | 11.1 | 12.1 | +/- 1 |
| 1 ” | 11.5 | 10.3 | 11.3 | 12.3 | +/- 1 |
| 1 1/4 ” | 11.5 | 10.6 | 11.6 | 12.6 | +/- 1 |
| 1 1/2 ” | 11.5 | 10.8 | 11.8 | 12.8 | +/- 1 |
| 2 ” | 11.5 | 11.2 | 12.2 | 13.2 | +/- 1 |
| 2 1/2 ” | 8 | 11.6 | 12.6 | 13.6 | +/- 1 |
| 3 ” | 8 | 12.1 | 13.1 | 14.1 | +/- 1 |
| 4 ” | 8 | 12.9 | 13.9 | 14.9 | +/- 1 |
| TIPO DE NIPLES POR LONGITUD (C) | ||||||||||||
| TAMAÑO NOMINAL (PULGADAS) | ||||||||||||
| TIPO DE NIPLE | 1/8" | 1/4" | 3/8“ | 1/2" | 3/4" | 1" | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| ROSCA CORRIDA | 3/4" | 7/8" | 1 | 1 1/8 | 1 3/8 | 1 1/2 | 1 5/8 | 1 3/4 | 2 | 2 1/2 | 2 5/8 | 2 7/8 |
| LONGITUD DEL NIPLE | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | |||||||
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | ||||
| 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | ||
| 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | |
| 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | |
| 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
