| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 4" |
| Minimum Order Quantity: | 100PCS |
| Price: | 1-10USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000PCS PER MONTH |
| Shape: | Equal | Head Code: | Round |
|---|---|---|---|
| Material: | Iron | Connection: | Male,grooved |
| Technics: | Casting | ||
| High Light: | grooved steel pipe,grooved end pipe fittings |
||

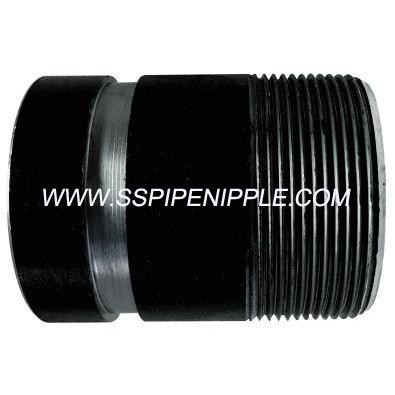

BLACK SCH40 GROOVE X THREAD 4"x6" NIPPLE ASTM A53 ASME B1.20.1
BLACK SCH40 GROOVE X THREAD NIPPLE
• Schedule 40
• Grooved x Bevel and Grooved x Threaded
• Conforms to ASTM A53 and ASME B1.20.1
• All Grooves are Cut Grooved Per AWWA C606
| GROOVED x BEVEL DIMENSIONS | |||
| Size | A | B | Weight (lbs) |
| 2” x 4” | 4 | 2.38 | 1.1 |
| 2-1/2” x 4” | 4 | 2.88 | 1.68 |
| 3” x 3” | 3 | 3.5 | 1.55 |
| 3” x 4” | 4 | 3.5 | 2.19 |
| 4” x 4” | 4 | 4.5 | 2.79 |
| GROOVED x THREADED DIMENSIONS | |||
| Size | A | B | Weight (lbs) |
| 1-1/2” x 4” | 4 | 1.9 | 0.81 |
| 2” x 4” | 4 | 2.38 | 1.1 |
| 2-1/2” x 4” | 4 | 2.88 | 1.68 |
| 3” x 3” | 3 | 3.5 | 1.55 |
| 3” x 4” | 4 | 3.5 | 2.18 |
| 4” x 4” | 4 | 4.5 | 3.09 |
| 4” x 6” | 6 | 4.5 | 4.9 |
