304/316 Stainless Steel Pipe Nipple Customized 10.27mm - 219mm Outer Diameter

Basic Information
Place of Origin: CHINA
Brand Name: HUAHAI
Certification: ISO9001
Model Number: 1/8"-6"
Minimum Order Quantity: 100PCS
Price: 2-15USD
Packaging Details: BOX-PALLET
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000PCS PER MONTH
Application: Construction,Industry,machine Building Steel Grade: 304/304L,316/316L Etc
Type: Seamless And Welded Welding Line Type: Weld/seamless
Standard: ASTM,JIS,AISI,DIN,EN Thickness: 1mm-150mm(SCH10-XXS),According To Your Demand
Outer Diameter: Customized/10.27mm--219mm Length: 10mm-6000mm
Finish: Brush Polish,bright Item: 304 304L 316L 316 317L Seamless Stainless Steel Pipe
High Light:

stainless steel threaded nipple

,

ss pipe nipple

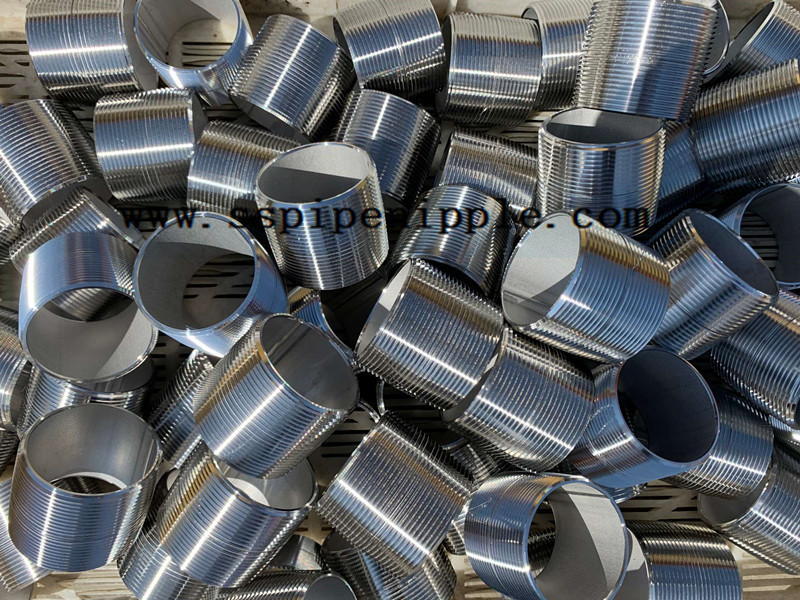

SCH40 STAINLESS STEEL THREADED PIPE NIPPLE NPT 1/2"XCLOSE 304/316 ASTM 312



304 304L /316 316L Stainless Steel
• Schedule 40 /80

• Material Test Reports (MTR’S) Available
• Stainless Steel Conforms to ASTM A312
• Dimensions & Ends Conform to ASTM A733
• Threads Conform to ASME B1.20.1
• Meets NSF / ANSI 372
• Stocked from 1/8" through 6" diameters



B A Length
Pipe Size Pipe O.D. Close Space
1/8” 0.405 3/4" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1/4” 0.54 7/8" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3/8” 0.675 1 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1/2” 0.84 1 1/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3/4” 1.05 1 3/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
1” 1.315 1 1/2   2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
11/4” 1.66 1 5/8   2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
11/2” 1.9 1 3/4   2 2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
2” 2.375 2     2 1/2 3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
21/2” 2.875 2 1/2       3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
3” 3.5 2 5/8       3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
4” 4.5 2 7/8           4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
5” 5.563 3             4 1/2 5 5 1/2 6 7 8 9 10 11 12
6” 6.625 3 1/8             4 1/2 5 5 1/2 6 7 8 9 10 11 12
8” 8.625 3 1/2             4 1/2 5 5 1/2 6 7 8 9 10 11 12
