| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"-6" |
| Minimum Order Quantity: | 100PCS |
| Price: | 2-15USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS PER MONTH |
| Application: | Construction,Industry,machine Building | Steel Grade: | 304/304L,316/316L Etc |
|---|---|---|---|
| Type: | Seamless And Welded | Welding Line Type: | Weld/seamless |
| Standard: | ASTM,JIS,AISI,DIN,EN | Thickness: | 1mm-150mm(SCH10-XXS),According To Your Demand |
| Outer Diameter: | Customized/10.27mm--219mm | Length: | 10mm-6000mm |
| Finish: | Brush Polish,bright | Item: | 304 304L 316L 316 317L Seamless Stainless Steel Pipe |
| Highlight: | stainless steel nipple fittings,ss pipe nipple |
||
Niple Acero Inoxidable 304/316 CEDULA 40 ROSCA 1" X 11" NPT ANSI/ASME B1.20.1

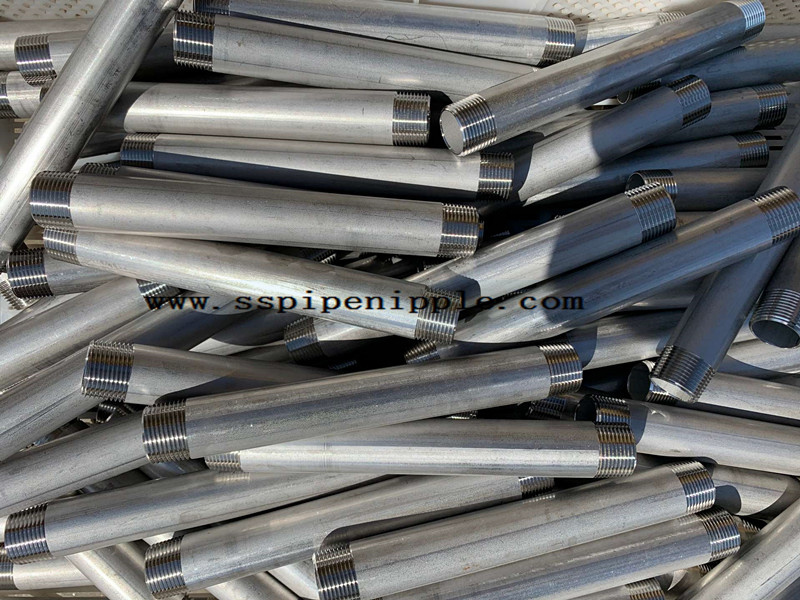

• 304 304L /316 316L Stainless Steel Pipe Nipple
• Schedule 40 /80
• Material Test Reports (MTR’S) Available
• Stainless Steel Conforms to ASTM A312
• Dimensions & Ends Conform to ASTM A733
• Threads Conform to ASME B1.20.1
• Meets NSF / ANSI 372
• Stocked from 1/8" through 6" diameters
| B | A ,Length | C,Nominal Wall | ||||||||||||||||||
| Pipe Size | Pipe O.D. | Close | Space | STD. | XH | |||||||||||||||
| 1/8” | 0.405 | 3/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.068 | 0.095 |
| 1/4” | 0.54 | 7/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.088 | 0.119 |
| 3/8” | 0.675 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.091 | 0.126 |
| 1/2” | 0.84 | 1 1/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.109 | 0.147 |
| 3/4” | 1.05 | 1 3/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.113 | 0.154 |
| 1” | 1.315 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.133 | 0.179 | |
| 11/4” | 1.66 | 1 5/8 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.14 | 0.191 | |
| 11/2” | 1.9 | 1 3/4 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.145 | 0.2 | |
| 2” | 2.375 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.154 | 0.218 | ||
| 21/2” | 2.875 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.203 | 0.276 | |||
| 3” | 3.5 | 2 5/8 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.216 | 0.3 | |||
| 4” | 4.5 | 2 7/8 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.237 | 0.337 | |||||
| 5” | 5.563 | 3 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.258 | 0.375 | ||||||
| 6” | 6.625 | 3 1/8 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.28 | 0.432 | ||||||
| 8” | 8.625 | 3 1/2 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.322 | 0.5 | ||||||
Length up to 72"
XXH Sch160 is available
