| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/2''-72'' |
| Minimum Order Quantity: | 100PCS |
| Price: | $0.50 - $25.90 / Piece |
| Packaging Details: | plywood cases |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Type: | Concentric Reducer | Application: | Gas |
|---|---|---|---|
| Pressure: | CLASS150/CLASS300/CLASS600/CLASS900/CLASS1500/ | Certificate: | ISO9001,EN10241, ANSI B16.9 |
| High Light: | concentric swage reducer,weldable steel pipe fittings |
||

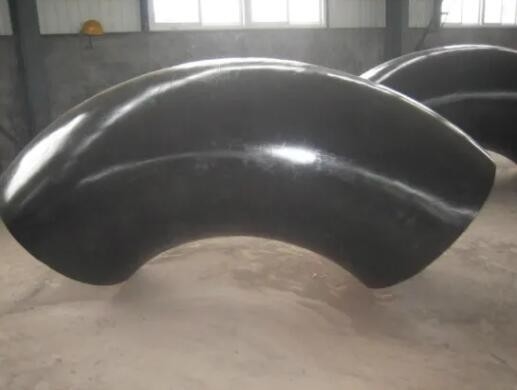

Butt welded carbon steel 90 degree elbow pipe fittings weldable SCH40 wall thickness pipe fittings for fire fighting
ANSI B16.9 ELBOW ASTM A234 WPB Buttwelding Elbow Pipe Fitting Black Butt Welded Fittings Elbow
Elbows,reducers,pipe tees,bends,pipe caps
MATERIAL
Carbon steel,stainless steel,alloy steel
We can produce according to materials appointed by consumers.
STANDARD
ANSI,ASME,API5L,DIN,JIS,BS,GB
we can also produce according to drawing by customers.
WALL THICKNESS
Sch5-Sch160 XS XXS STD
| PIPE FITTINGS | |
| Production Name | 45 / 90 / 180 , Long / Short Radius Elbows, Equal / Reducing Crosses, Concentric / Eccentric Reducers, Caps, Stub Ends |
| Size Range | From ½" up to 72" From 1/2 to 30 (Seamless Pipe Fittings),Form16 to 72(Seam Pipe Fittings) |
| Schedule | SCH STD, XS, XXS, SCH 10 ~ SCH 160 |
| Material Code: | |
| 1 CARBON STEEL | ASTM A234 WPB, WPC; ASTM A420 WPL9, WPL3, WPL6, WPHY-42 |
| WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70, | |
| 2 ALLOY STEEL | ASTM A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91 |
| 3 SPECIAL ALLOY | Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800, |
| Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500 | |
| WPS 31254 S32750, UNS S32760 | |
| 4 STAINLESS STEEL | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254 |
| 5 Duplex$super duplex stainless steel | ASTM A 815 UNS S31803, UNS S32750, UNS S32760 |
| STANDARDS | ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| CE and certification: | ISO9001:2000 , API , BV , SGS, LOIYD |
| Applications range: | Petroleum, chemical, power, gas, metallurgy, shipbuilding.construction ,water and nuclear power etc. |
| Packaging: | seaworthy package,Plywood Cases or pallet or as per customers requirement |
| Quality | high lever |
| The third party inspection: | BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
| Delivery Time: | At the earliest ,within the period required by customer. |
| Remark: | Also can supply IBR fittings and Specialized NACE & HIC Fittings. |
