| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"-6" |
| Minimum Order Quantity: | 100PCS |
| Price: | 2-15USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS PER MONTH |
| Application: | Construction,Industry,machine Building | Steel Grade: | 304/304L,316/316L Etc |
|---|---|---|---|
| Type: | Seamless And Welded | Welding Line Type: | Weld/seamless |
| Standard: | ASTM,JIS,AISI,DIN,EN | Thickness: | 1mm-150mm(SCH10-XXS),According To Your Demand |
| Outer Diameter: | Customized/10.27mm--219mm | Length: | 10mm-6000mm |
| Finish: | Brush Polish,bright | Item: | 304 304L 316L 316 317L Seamless Stainless Steel Pipe |
| High Light: | stainless steel nipple fittings,ss pipe nipple |
||
STAINLESS STEEL PIPE NIPPLE

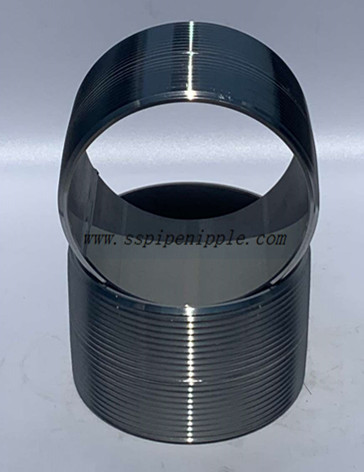

STAINLESS STEEL PIPE NIPPLE SCH40/SCH80 304/316 2"XCLOSE NPT ANSI/ASME B1.20.1
• 304 304L /316 316L Stainless Steel Pipe Nipple
• Schedule 40 /80
• Material Test Reports (MTR’S) Available
• Stainless Steel Conforms to ASTM A312
• Dimensions & Ends Conform to ASTM A733
• Threads Conform to ASME B1.20.1
• Meets NSF / ANSI 372
• Stocked from 1/8" through 6" diameters
| B | A ,Length | C,Nominal Wall | ||||||||||||||||||
| Pipe Size | Pipe O.D. | Close | Space | STD. | XH | |||||||||||||||
| 1/8” | 0.405 | 3/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.068 | 0.095 |
| 1/4” | 0.54 | 7/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.088 | 0.119 |
| 3/8” | 0.675 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.091 | 0.126 |
| 1/2” | 0.84 | 1 1/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.109 | 0.147 |
| 3/4” | 1.05 | 1 3/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.113 | 0.154 |
| 1” | 1.315 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.133 | 0.179 | |
| 11/4” | 1.66 | 1 5/8 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.14 | 0.191 | |
| 11/2” | 1.9 | 1 3/4 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.145 | 0.2 | |
| 2” | 2.375 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.154 | 0.218 | ||
| 21/2” | 2.875 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.203 | 0.276 | |||
| 3” | 3.5 | 2 5/8 | 3 | 3 1/2 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.216 | 0.3 | |||
| 4” | 4.5 | 2 7/8 | 4 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.237 | 0.337 | |||||
| 5” | 5.563 | 3 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.258 | 0.375 | ||||||
| 6” | 6.625 | 3 1/8 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.28 | 0.432 | ||||||
| 8” | 8.625 | 3 1/2 | 4 1/4 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 0.322 | 0.5 | ||||||
Length up to 72"
XXH Sch160 is available
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
