Connection: | Female / Male | Color: | Black, Galvanised |
---|---|---|---|
Material: | Malleable Iron | Specification: | 1/2′′ - 6′′ |
Media Temperature: | Normal Temperature | Media: | Water,Oil,Gas |
High Light: | female 2 malleable iron fittings,galvanised 2 malleable iron fittings,tubing en 10242 pipe fittings |

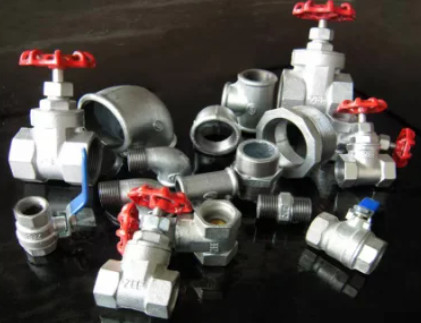

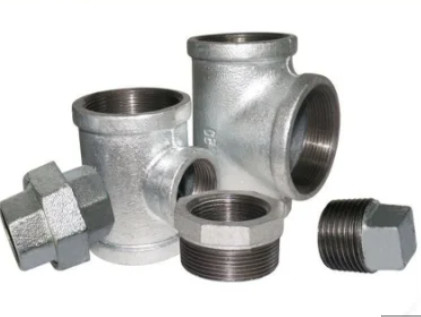

Malleable Cast Iron Fittings
Name | Elbow,Reducing Elbow,Street Elbow,Tee,Reducing Tee,Socket,Reducing Socket,Nipple,Bushing,Union,Bend,Cap,Plug,Back Nut | |
Technology | Casting | |
Types | Heavy Type,Medium Type,Light Type | |
Pressure | PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar | |
Max. Temperature | 200°C (392°F) | |
Hardness | 350MPA | |
Tensile Strength | HB150 (Brinell) | |
Hardness | 10% | |
Surface Finish | Steam Black,Electrical Zinc Plated,Cold Galvanised,Hot Dipped Galvanised... | |
Design Standard | American Standard | ASME B16.3,ASME B16.14,ASME B16.39(Union) |
European Standard | EN10242 | |
British Standard | BS EN10242,BS143,BS1256 | |
Germany Standard | DIN2950 | |
Brazil Standard | NBR6943 | |
ISO Standard | ISO 49,IS1879 | |
Thread Standard | ASME B.1.20.1 / EN10226 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 / BS 21.173 | |
Material Standard | Malleable Iron to ASTM A-197,ASTM A47 | |
Size | 1/8"-6" // DN6-DN150 | |
Packages | Plywood Cases or Plywood Pallets or Boxes | |
Application | Petrochemical & Gas Industry,Chemical,Machinery,Electric Power,Ship Building,Construction Water Works,Valve Industry,etc. | |
Advantages | High Quality + Ready Stock + Faster Delivery + Customized | |
Brand | LMP | |
Certificate | ISO9001,API,CE,UL/FM |
