Material: | Forged Steel | Working Pressure: | 1000psi |
---|---|---|---|
Channel: | Straight Through Type | Type: | Floating Ball Valve |
Standard: | ASME/API | Application: | Industrial Usage, Water Industrial Usage, Household Usage |
Specification: | 1/2"-8" | ||
High Light: | gas stainless steel threaded ball valve,50mm stainless steel threaded ball valve,ball valve 1 piece stainless steel |

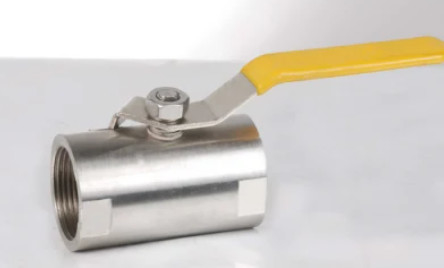

1PC Round Stainless Steel Reduce Port Thread Gas Ball Valve
1. SIZE:3/8"~2''
2. REDUCED BORE (1000PSI)
3. Threaded: BSP. NPT. BSPT. DIN 259/2999
4. Thread : ANSI B1.20.1
5. Welding : ANSI B 16.11
6. Inspection standard: API598/DIN12266
7. Materials: WCB, A105, CF8M (SS316), CF8 (SS304), CF3(304L), CF8M(316L), etc.
Features:
1. Investment casting body
2. Working pressure 800/1000 psi for W.O.G.
3. Adjustable stem packing
4. Pressure Balance Hole In Ball Slot
5. Pure Teflon seals and seats
6. Temperature range: -60 to 450 °F
7. Blow-out proof stem, ball are made of ss316 or customer request
8. 100% leakage tested at 100 psi air under water
9. Hydrostatic test pressure: 1500psi/3000psi
10. Locking device (option)
Product Name | 1PC Round Stainless Steel Reduce Port Thread Gas Ball Valve |
1. Material | WCB, A105, SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
2. Size | 3/8''~2'' ( DN10~DN50) |
3.Certificate | ISO9001 & CE |
4. Port | Reduce Port |
5. Working Pressure | 1000psi |
6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
7. Working Temp. | -20~300ºC |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Seal | PTFE, RPTFE, PPL |
10. Locking | Option |
11. Inspection & Testing | According to API598 |
