ASTM A106 Threaded Pipe Nipples High Strength Long Working Life

Basic Information
Place of Origin: CHINA
Brand Name: HUAHAI
Certification: ISO9001
Model Number: 1/8"--8"
Minimum Order Quantity: 1000PCS
Price: 0.1-8USD
Packaging Details: BOX-PALLET
Delivery Time: 30DAYS
Payment Terms: T/T
Supply Ability: 100000PCS
Technics: Casting Material: ASTM A106
Surface: Black Usage: Oil
High Light:

black steel pipe nipple

,

carbon steel nipple

BLACK PIPE NIPPLE 1/2" X 4" XH/SCH80 SEAMLESS CS NPT ANSI/ASME B1.20.1



Schedule 80 Seamless Steel Pipe Nipples - Black

Material: ASTM A106,
Dimensions: ASTM A733
Threads: ASME B1.20.1
Available: 1/8” through 8” diameters





• The material for Seamless steel pipe conforms to the requirements of ASTM A106 Grade B.
• Seamless Steel Nipple Design/Dimensions conform to ASTM A733.
Contact HUAHAI for exact dimensional information.
• NPT threads on Nipples conform to ASME B1.20.1. Threads are right hand on both the ends.
• The ends of the Nipple are chamfered on the outside at an angle of 35˚ +/- 10˚.
to the central axis and free from burrs
• Ends are cut square to the central axis.
• All nipples are stamped with heat code and material sepcifications

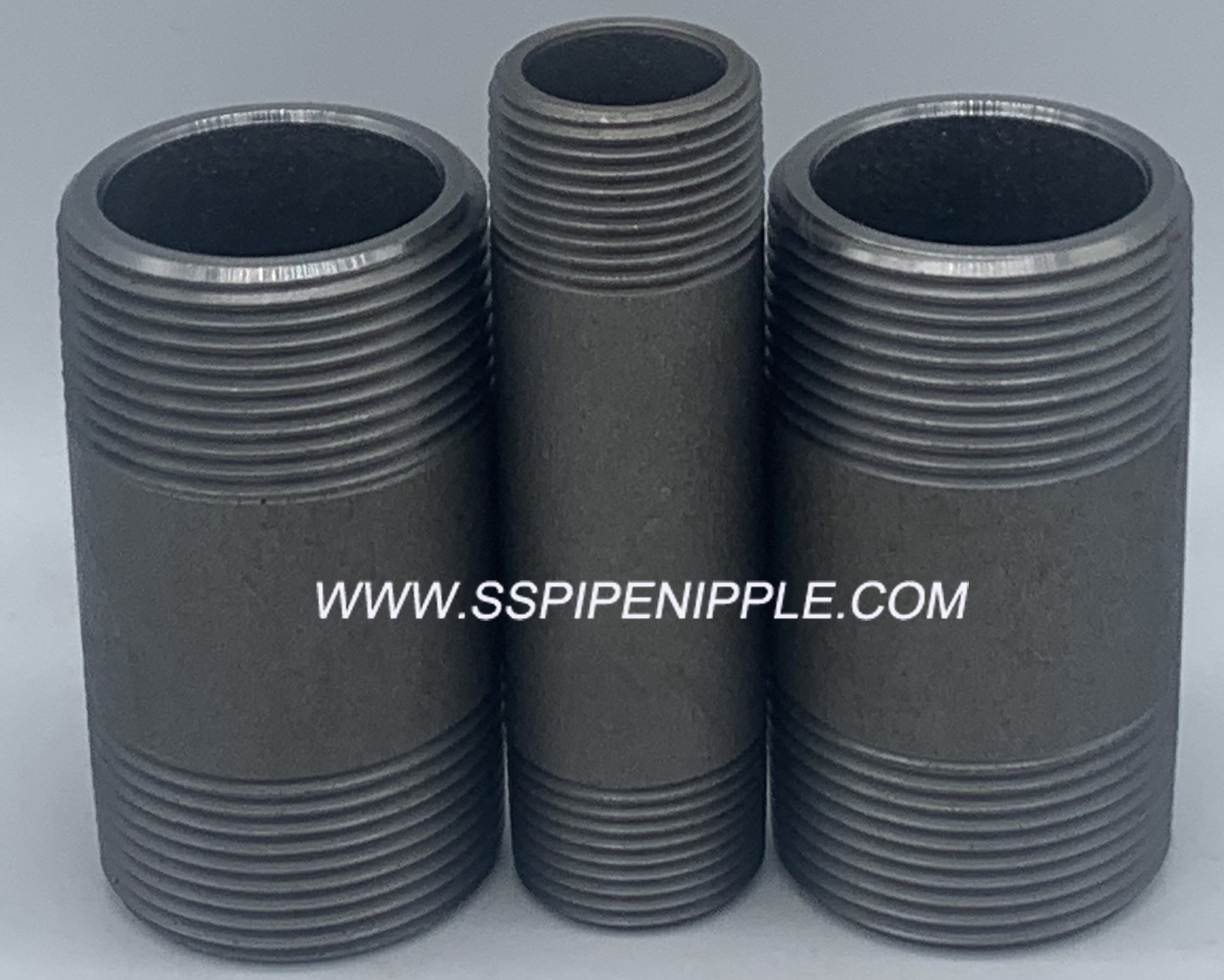

ASTM A106 Threaded Pipe Nipples High Strength Long Working Life 0

ASTM A106 Threaded Pipe Nipples High Strength Long Working Life 1



  B A Length

Pipe Size Pipe O.D. Close Space
1/8” 0.405 3/4" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
1/4” 0.54 7/8" 1 1/2 2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
3/8” 0.675 1 1 1/2 2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
1/2” 0.84 1 1/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
3/4” 1.05 1 3/8 1 1/2 2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
1” 1.315 1 1/2   2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
11/4” 1.66 1 5/8   2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
11/2” 1.9 1 3/4   2 2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
2” 2.375 2     2 1/2 3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
21/2” 2.875 2 1/2       3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
3” 3.5 2 5/8       3 3 1/2 4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
4” 4.5 2 7/8           4 4 1/4 5 5 1/2 6 7 8 9 10 11 12
5” 5.563 3             4 1/4 5 5 1/2 6 7 8 9 10 11 12
6” 6.625 3 1/8             4 1/4 5 5 1/2 6 7 8 9 10 11 12
8” 8.625 3 1/2             4 1/4 5 5 1/2 6 7 8 9 10 11 12



Threaded pipe nipple refers to the pipe connection with thread, which is the most common pipe fitting in industry and life. The threaded joint makes the connection of the pipe easier, and the disassembly and replacement easier, which greatly saves the cost of the pipe connection.



Threaded nipple generally includes threaded elbow, threaded tee, threaded union, threaded pipe cap, threaded pipe hoop, threaded reducer, threaded plug, bushing, etc.



The industrial screw nipples are generally made of metal, with high pressure resistance. The materials are carbon steel, stainless steel, alloy steel, brass, etc.; the screw nipples used in life are generally made of PC, PVC, PE, PPR, etc.



Main features:

1. The pipe nipple has high strength and good ductility, which can give full play to the strength and ductility of the steel base material. The joint performance can meet the class I joint standard in jgj107-2003 and can be broken in the base metal.

2. The connection is convenient, fast and easy to operate.

3. The detection is convenient and intuitive.

4. The steel bar processing straight thread can be prefabricated, the sleeve can be factory produced, does not occupy the construction period, and the processing efficiency is high.

5. No electricity, no gas, no open fire operation, no oil leakage and no pollution during construction connection, all-weather construction is available.

6. It has strong applicability and can be operated flexibly in the place where the reinforcement is arranged intensively in the narrow and small site.

7. It can be connected with HRB335 and HRB400 reinforcement of the same diameter or different diameter in horizontal, vertical and oblique directions.



According to your needs, we provide different materials of steel pipe joints, good quality and good density, welcome to contact us and to buy.
