| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1"--4" |
| Minimum Order Quantity: | 100PCS |
| Price: | 1--10 |
| Packaging Details: | PALLET---BOX |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
| Material: | Stainless Steel | Connection: | Male |
|---|---|---|---|
| Shape: | Reducing | Application: | Industry ,oil |

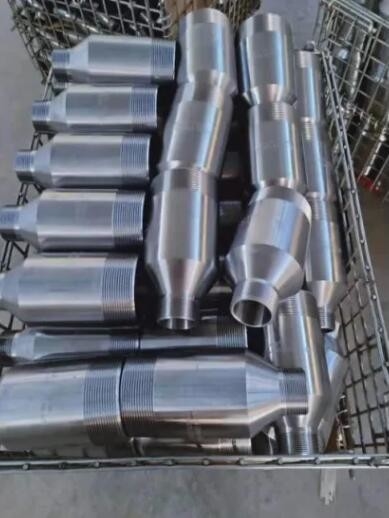

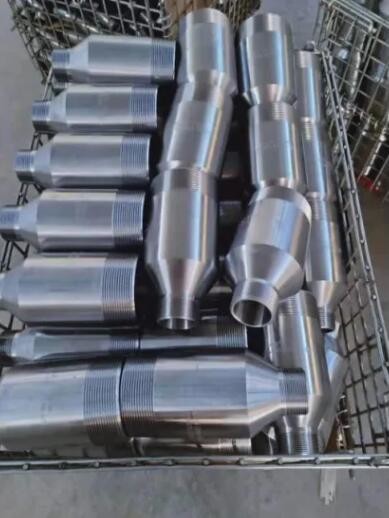

| High Light: | swage pipe fitting,swage pipe nipple |
||
| Type | pipe fittings |
| Size | 1/2" - 48" |
| Wall thickness | Sch 10- Sch xxs |
| Applicable standard | ASME, ASTM, MSS, JIS, DIN, EN, |
| Material | F304/F304L/F316/F316L/F321/F347H/F316Ti/s3275/904L/S31803/2205/F51. |
| Connection | Butt-welding, Socket-welding , etc |
| Applications rang | such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Quality | ISO9001: ISO2000-Quality-Systerm has been passed. |
| Packaging | Wooden cases, wooden pallet plastic bag or as per customers requirement |
| Delivery time | According to customers requirement |
| Productivity | 10000 T/Y |
| Others | The belief we are following is " Marketing our living by quality and developing our career by credit standing" |
| Pipe Size | Outside Diam. | A | T1 | T2 | |||
| D1 | D2 | Sch.40 | Sch.80 | Sch.40 | Sch.80 | ||
| 1/2 x 1/4 | 0.84 | 0.54 | 2.76 | - | 0.15 | - | 0.12 |
| 1/2 x 3/8 | 0.84 | 0.67 | 2.76 | - | 0.15 | - | 0.13 |
| 3/4 x 1/4 | 1.05 | 0.54 | 2.99 | - | 0.15 | - | 0.12 |
| 3/4 x 3/8 | 1.05 | 0.67 | 2.99 | - | 0.15 | - | 0.13 |
| 3/4 x 1/2 | 1.05 | 0.84 | 2.99 | - | 0.15 | - | 0.15 |
| 1 x 1/4 | 1.32 | 0.54 | 3.51 | - | 0.18 | - | 0.12 |
| 1 x 3/8 | 1.32 | 0.67 | 3.51 | - | 0.18 | - | 0.13 |
| 1 x 1/2 | 1.32 | 0.84 | 3.51 | - | 0.18 | - | 0.15 |
| 1 x 3/4 | 1.32 | 1.05 | 3.51 | - | 0.18 | - | 0.15 |
| 1-1/4 x 3/4 | 1.67 | 1.05 | 4.02 | - | 0.19 | - | 0.15 |
| 1-1/4 x 1 | 1.66 | 1.32 | 4.02 | - | 0.19 | - | 0.18 |
| 1-1/2 x 1/2 | 1.9 | 0.84 | 4.49 | - | 0.2 | - | 0.15 |
| 1-1/2 x 3/4 | 1.9 | 1.05 | 4.49 | - | 0.2 | - | 0.15 |
| 1-1/2 x 1 | 1.9 | 1.32 | 4.49 | - | 0.2 | - | 0.18 |
| 1-1/2 x 1-1/4 | 1.9 | 1.67 | 4.49 | - | 0.2 | - | 0.19 |
| 2 x 1/2 | 2.38 | 0.84 | 6.5 | - | 0.22 | - | 0.15 |
| 2 x 3/4 | 2.38 | 1.05 | 6.5 | - | 0.22 | - | 0.15 |
| 2 x 1 | 2.38 | 1.32 | 6.5 | 0.15 | 0.22 | 0.13 | 0.18 |
| 2 x 1-1/4 | 2.38 | 1.67 | 6.5 | 0.15 | 0.22 | 0.14 | 0.19 |
| 2 x 1-1/2 | 2.38 | 1.9 | 6.5 | 0.15 | 0.22 | 0.15 | 0.2 |
| 2-1/2 x 1 | 2.88 | 1.32 | 7.01 | 0.2 | - | 0.13 | - |
| 2-1/2 x 2 | 2.88 | 2.38 | 7.01 | 0.2 | 0.28 | 0.15 | 0.22 |
| 3 x 1 | 3.5 | 1.32 | 8 | 0.22 | - | 0.13 | - |
| 3 x 1-1/2 | 3.5 | 1.9 | 8 | 0.22 | - | 0.15 | - |
| 3 x 2 | 3.5 | 2.38 | 8 | 0.22 | 0.3 | 0.15 | 0.22 |
| 3 x 2-1/2 | 3.5 | 2.88 | 8 | 0.22 | - | 0.2 | - |
| 4 x 1 | 4.5 | 1.32 | 9.02 | 0.24 | - | 0.13 | - |
| 4 x 2 | 4.5 | 2.38 | 9.02 | 0.24 | 0.34 | 0.15 | 0.22 |
| 4 x 2-1/2 | 4.5 | 2.88 | 9.02 | 0.24 | 0.34 | 0.2 | 0.28 |
| 4 x 3 | 4.5 | 3.5 | 9.02 | 0.24 | - | 0.22 | - |
