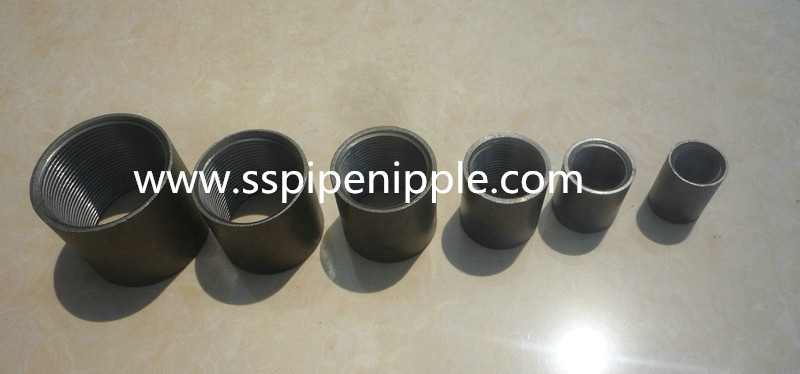

Seamless Carbon Steel Coupling Black Galvanised Reducing Socket

Basic Information
Place of Origin: CHINA
Brand Name: HUAHAI
Model Number: 1/8"--6"
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: BOX-PALLET
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 100000
Material: Seamless Steel Pipe Surface Treatment: Black, Hot Galvanized, Electro Galvanized
American Standard: ASTM A865 British Standard: BS EN10241
DIN Standard: DIN2999 Length: Standard Or As Customer's Require
High Light:

carbon steel pipe fittings

,

carbon steel pipe and fittings

Carbon Steel Merchant Coupling Black / Galvanized Seamless Socket



American Standard: ASTM A865 British Standard: BS EN10241 DIN Standard: DIN2999

Type of pipe: Seamless pipe

Surface treatment: Black, Hot galvanized, Electro galvanized

Packing: Packed in standard export cartons, then on pallets.

Applications range: Convey Water, Oil, Gas, Steam and so on.

ASTM A865 AMERICAN STANDARD STEEL MERCHANT COUPLING

SIZE 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2
Outside Diam 0.563 0.719 0.875 1.063 1.313 1.576 1.9 2.2
Length 3/4 1 1/8 1 1/8 1 1/2 1 9/16 1 15/16 2 2
Threads NPSL NPSL NPSL NPSL NPSL NPSL NPSL NPSL

SIZE 2 2 1/2 3 3 1/2 4 5 6
Outside Diam 2.75 3.25 4 4.625 5 6.296 7.39
Length 2 1/16 3 1/16 3 3/16 3 5/16 3 7/16 3 11/16 3 15/16
Threads NPT NPT NPT NPT NPT NPT NPT

BS EN10241 BRITISH STANDARD STEEL MERCHANT COUPLING

SIZE 8 10 15 20 25 32 40 50
Min. Outside Diam 18.5 22 27 32.5 39.5 49 56 68
Min. Length 27 28 37 39 46 51 51 60
Size 65 80 100 125 150
Min. Outside Diam 84 98 124 151 178
Min. Length 69 75 87 96 96

DIN 2999 DIN STANDARD STEEL MERCHANT COUPLING

Size 6 8 10 15 20 25 32
Standard Min. Outside Dia 15 18.5 21.3 26.6 31.8 39.5 48.3
  Length(mm) 17 25 26 34 36 43 48
Half Min. Outside Dia 15 18.5 21.3 26.6 31.8 39.5 48.3
  Length(mm) 8 11 12 15 17 20 22

Size 40 50 65 80 100 125 150
Standard Min. Outside Dia 54.5 66.2 82 95 121.4 146.3 173.3
  Length(mm) 48 56 65 71 83 92 92
Half Min. Outside Dia 54.5 68 84.2 98.4 124 149 177
  Length(mm) 22 26 30 34 40 44 44
