Material: | Seamless Steel Pipe | Surface Treatment: | Black, Hot Galvanized, Electro Galvanized |
---|---|---|---|
American Standard: | ASTM A865 | British Standard: | BS EN10241 |
DIN Standard: | DIN2999 | Length: | Standard Or As Customer's Require |
High Light: | carbon steel pipe and fittings,galvanised reducing socket |

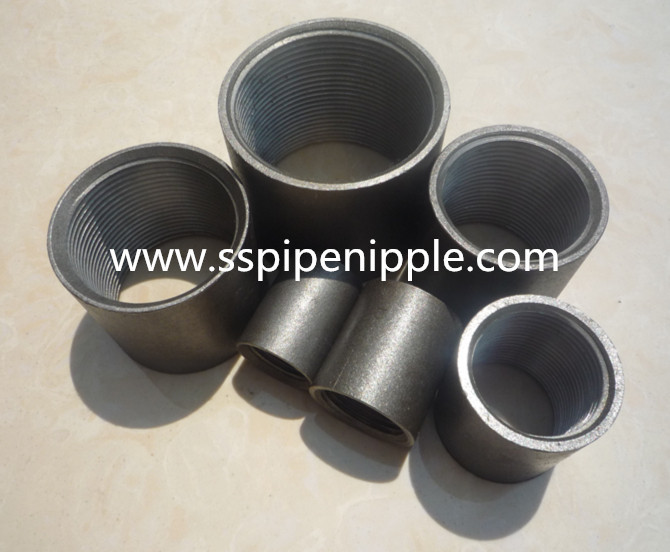

DIN2999/ BS En10241/ ASTM A865 Carbon Steel Merchant Coupling
Product Description:
Specification | Merchant coupling |
Surface | Hot dipped galvanized,Cold galvanized, Black |
Size | 1/8"---6" |
Grade | Heavy series, Standard series, Medium series, Light series |
Connection | Female |
Shape | Equal |
Packing | Bags,Cartons,Pallets or as Buyer's request |
Certificate | ISO9001 |
Application | Steam, air, gas and oil pipes or for many other fluids |
O.D. | 1/8"-6" |
Length | 3/4"-24"; 19mm-500mm; Or as per customer's request |
Thickness | SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C |
Surface | Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black |
Threads | DIN, BS, NPT, Metric, BSPT, BSP, NPS (ISO7/1, DIN 2999, ANSI B1.20.1) |
Dimension | BS EN10241, ASTM A733, DIN2982 |
Type | Full length,half length,Saddle/plain end,or according to special request |
Mechanical Properties | Tensile Strength ≥ 320N/mm2 |
Yield Strength≥ 195N/mm2 | |
Elongation ≥20% | |
Hydraulic Test | Working Pressure: Max 1.5MPa |
Test Pressure: Max 2.5MPa | |
Temperature: | -20 ~ 120 °c |
Production Capacity | 60000 MT per Year |
Lead Time | Within 30 Days if enquiry not more than 1x20' Container |
