| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"---8" |
| Minimum Order Quantity: | 100PCS |
| Price: | 0.1---10USD |
| Packaging Details: | BOX--PALLET |
| Delivery Time: | 15DAYS |
| Payment Terms: | T/T |
| Color: | Galvanized | Material: | ASTM A53 |
|---|---|---|---|
| Connection: | Male Thread | Application: | Gas ,Water |
| Highlight: | schedule 40 carbon steel pipe,galvanized steel pipe nipple |
||
SCH40 GALVANIZED PIPE NIPPLES ASTM A53.pdf

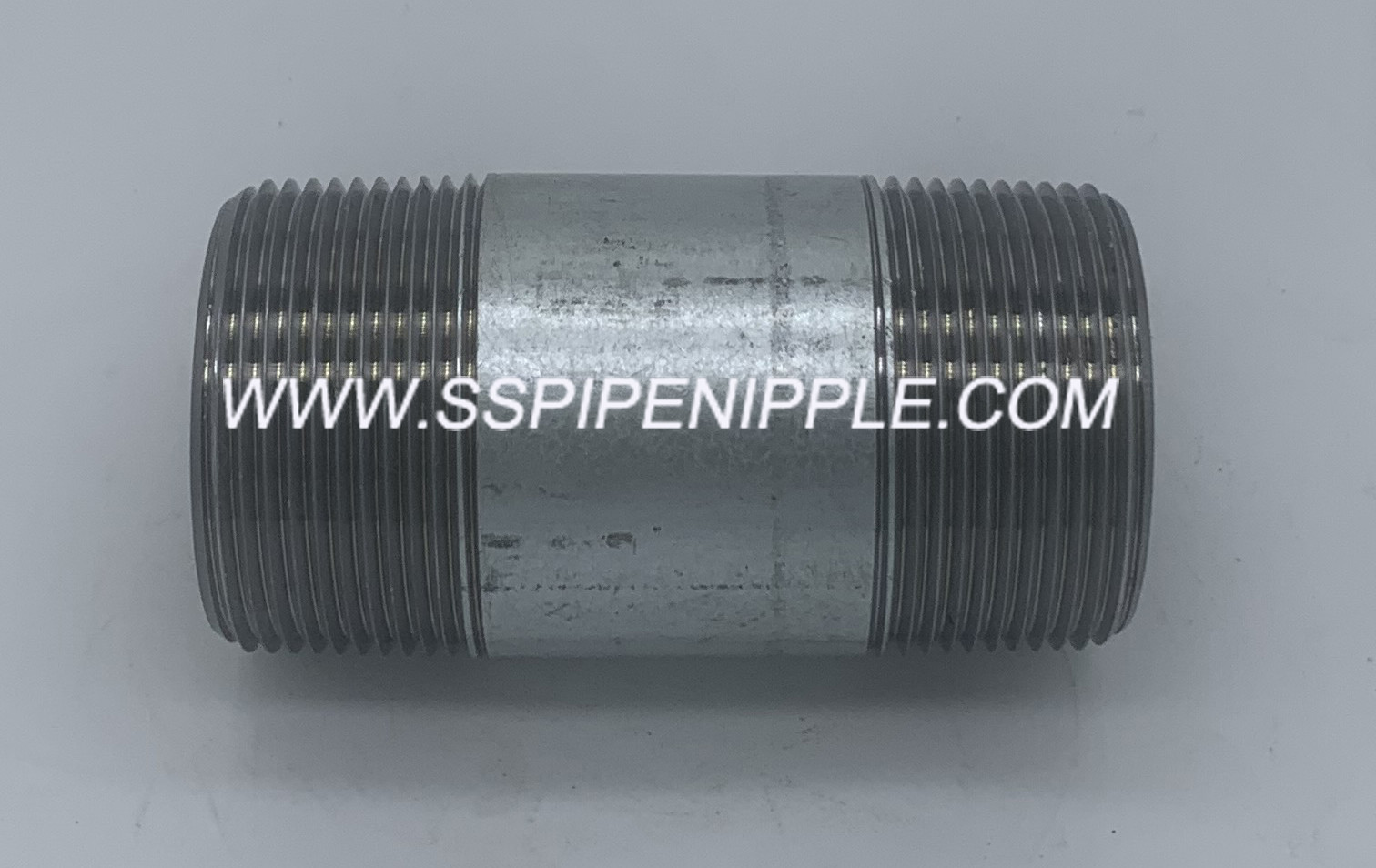

Schedule 40 Welded Steel Pipe Nipples - Galvanized
Material: ASTM A53/A53M, ERW type, Grade B
Dimensions: ASTM A733
Threads: ASME B1.20.1
Approvals: NSF61, NSF372
Available: 1/8” through 8” diameter
| B | A Length | |||||||||||||||||
| Pipe Size | Pipe O.D. | Close | Space | |||||||||||||||
| 1/8” | 0.405 | 3/4" | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1/4” | 0.54 | 7/8" | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 3/8” | 0.675 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1/2” | 0.84 | 1 1/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 3/4” | 1.05 | 1 3/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1” | 1.315 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 11/4” | 1.66 | 1 5/8 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 11/2” | 1.9 | 1 3/4 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 2” | 2.375 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| 21/2” | 2.875 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| 3” | 3.5 | 2 5/8 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| 4” | 4.5 | 2 7/8 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||||
| 5” | 5.563 | 3 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||
| 6” | 6.625 | 3 1/8 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||
| 8” | 8.625 | 3 1/2 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||
1. OEM Factory : Professional manufacturer, clients from whole world. A group of highly experienced
technical engineers is right here waiting for any of your requests.
2. High Quality, Competitive Price: Custom is accepted.
3. Complete Service: Long service Life, Fast delivery, Multilingual services.
4. Certificates: ISO9001, CE, UL, WRAS.
5. Low MOQ: Ready for providing the sample and producing some small orders.
