| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"---8" |
| Minimum Order Quantity: | 100PCS |
| Price: | 0.1---10USD |
| Packaging Details: | BOX--PALLET |
| Delivery Time: | 15DAYS |
| Payment Terms: | T/T |
| Color: | Galvanized Carbon Steel | Material: | ASTM A53 |
|---|---|---|---|
| Connection: | Male Thread | Application: | Gas ,Water,Fire Protection |
| Technics: | ERW, Forged | Wall Thickness: | 1.5-10mm |
| High Light: | schedule 40 carbon steel pipe,seamless pipe nipple |
||
What is use of pipe nipple?
These kind of nipples are suitable for use under extreme conditions of vibration, pressure surges and changes of temperature. Swage nipple: The basic purpose of a swage nipple is to bringing the flow of fluids from one pipe size to another. These are available with plain, beveled or threaded ends.
SCH40 GALVANIZED PIPE NIPPLES ASTM A53.pdf

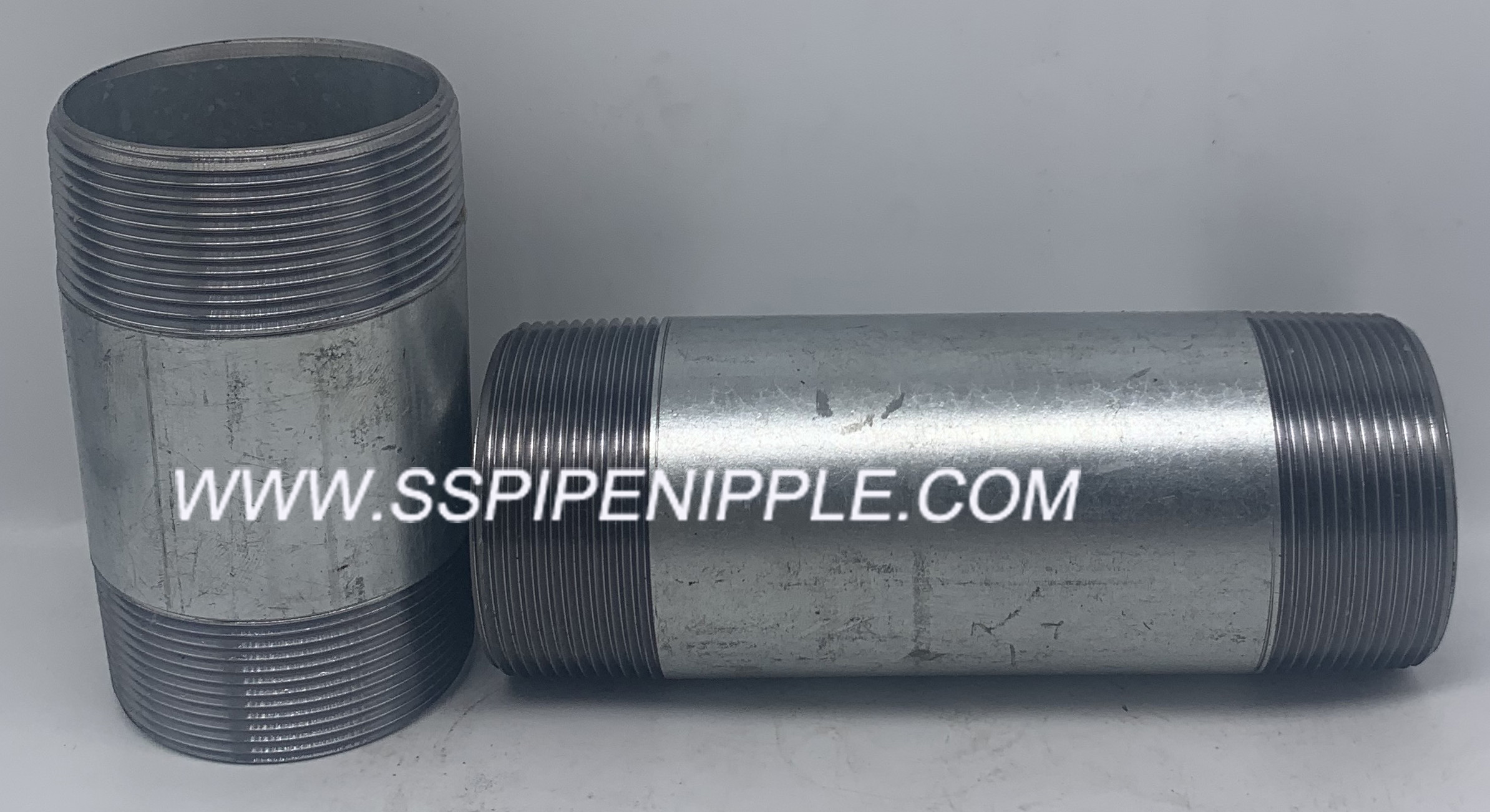

Schedule 40 Welded Steel Pipe Nipples - Galvanized
Material: ASTM A53/A53M, ERW type, Grade B
Dimensions: ASTM A733
Threads: ASME B1.20.1
Approvals: NSF61, NSF372
Available: 1/8” through 8” diameter
| B | A Length | |||||||||||||||||
| Pipe Size | Pipe O.D. | Close | Space | |||||||||||||||
| 1/8” | 0.405 | 3/4" | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1/4” | 0.54 | 7/8" | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 3/8” | 0.675 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1/2” | 0.84 | 1 1/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 3/4” | 1.05 | 1 3/8 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1” | 1.315 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 11/4” | 1.66 | 1 5/8 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 11/2” | 1.9 | 1 3/4 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 2” | 2.375 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| 21/2” | 2.875 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| 3” | 3.5 | 2 5/8 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| 4” | 4.5 | 2 7/8 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||||
| 5” | 5.563 | 3 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||
| 6” | 6.625 | 3 1/8 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||
| 8” | 8.625 | 3 1/2 | 4 1/2 | 5 | 5 1/2 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||
1. OEM Factory : Professional manufacturer, clients from whole world. A group of highly experienced
technical engineers is right here waiting for any of your requests.
2. High Quality, Competitive Price: Custom is accepted.
3. Complete Service: Long service Life, Fast delivery, Multilingual services.
4. Certificates: ISO9001, CE, UL, WRAS.
5. Low MOQ: Ready for providing the sample and producing some small orders.
| AMERICAN STANDARD STEEL PIPE NIPPLE | |
| American Standard | ASTM A733 |
| Pipe | ASTM A53/ASTM A106/ASTM A333 |
| Threads | ANSI B1.20.1 |
| SCH | 40.80.160.XXS |
| BRITISH STANDARD STEEL PIPE NIPPLE | |
| British Standard | BS EN10241 |
| Pipe | BS1387, Medium&Heavy |
| Threads | ISO7/1 |
| DIN STANDARD STEEL PIPE NIPPLE | |
| DIN Standard | DIN EN10241 |
| Pipe | DIN2440, Medium&Heavy |
| Threads | ISO7/1 |
STEEL PIPE NIPPLE DETAILS
| Material | 1.Carbon steel 2.Stainless steel |
| British Standard | Threads:BS21 |
| DIN Standard | Threads:DIN2999 |
| American Standard | Threads:ASTM A865, ASTM A733 |
| Hydraulic Test | Test Pressure: Max2.5MPa |
| Working Pressure: Max2.5MPa | |
| Model | Thread both end nipple, thread one end nipple, close/full nipple |
| Surface | 1.Galvanized 2.Electro galvanised 3.normal black 4.sand blasting |
| Size | OD:1/8''-6'' |
| WT: SCH20, SCH40, SCH60, SCH80, SC100, SCH120, SCH160, STD, xs, xxs, CLASS A, CLASS B, CLASS C etc | |
| Length: Standard or Special | |
| Series | Heavy series, Standard series, Mediun series, Light series |
| Connection | Male |
| Shape | Equal |
| Certificate | ISO, BV |
| Customers' drawing or designs are available. | |
