| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"--8" |
| Minimum Order Quantity: | 1000PCS |
| Price: | 0.1-8USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS |
| Technics: | Casting | Shape: | Equal |
|---|---|---|---|
| Material: | Carbon Steel Pipes | Surface: | Black |
| High Light: | black steel pipe nipple,threaded pipe nipples |
||
NEW SCH40 BLACK PIPE NIPPLES ASTM A53.pdf
Schedule SCH40 Welded Steel Pipe Nipples - Black

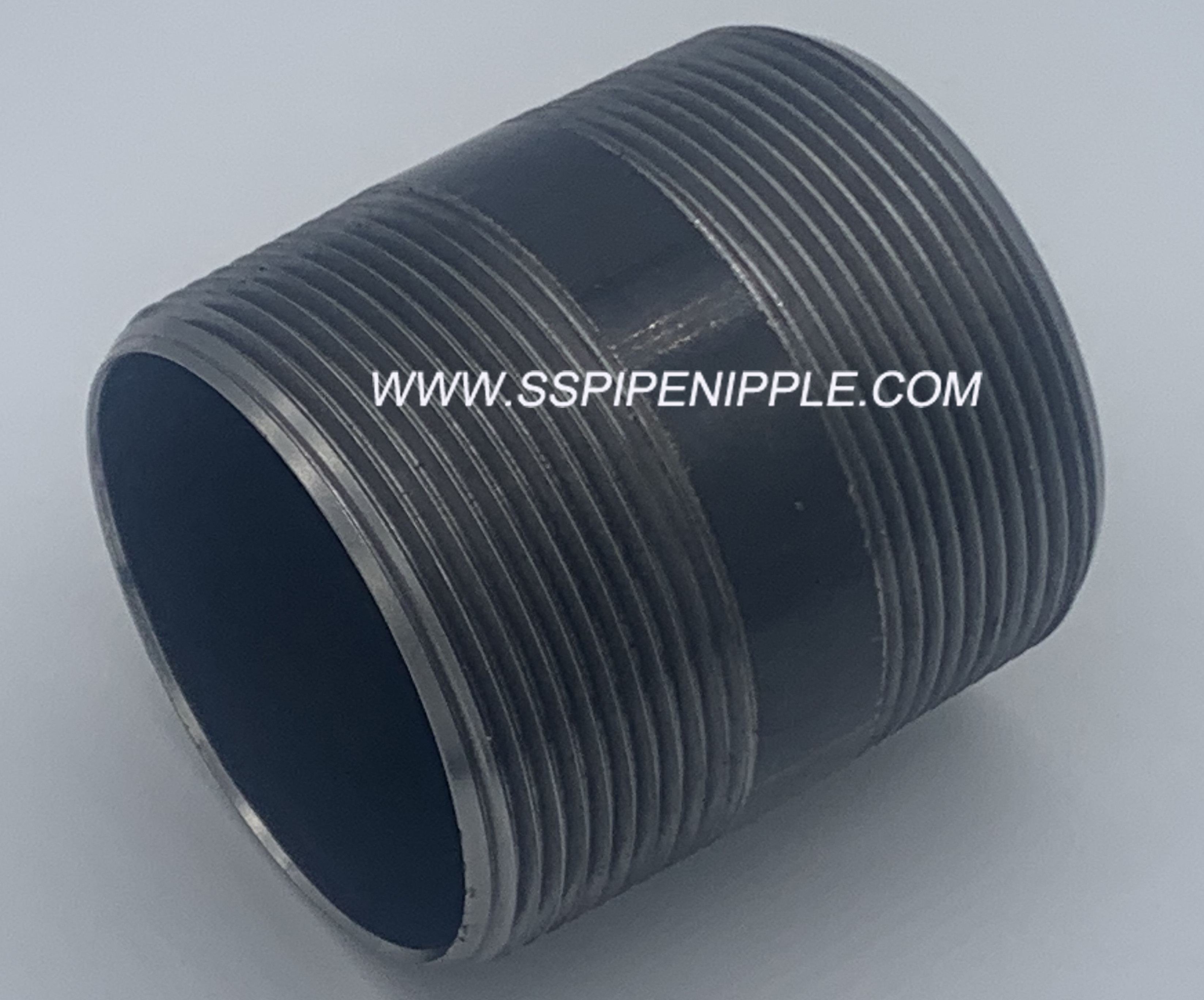

SCH40 BLACK STEEL PIPE NIPPLE NPT ASTM A53 2"X4" ASTM 733
| • The material for Welded steel pipe conforms to the requirements of ASTM A53 |
| • Welded Steel Pipe Nipple Design/Dimensions conform to ASTM A733. |
| Contact HUAHAI for exact dimensional information. |
| • NPT threads on Nipples conform to ASME B1.20.1. Threads are right hand on both the ends. |
| • The ends of the Nipple are chamfered on the outside at an angle of 35˚ +/- 10˚. |
| to the central axis and free from burrs |
| • Ends are cut square to the central axis. |
| • All nipples are stamped with heat code and material sepcifications |
