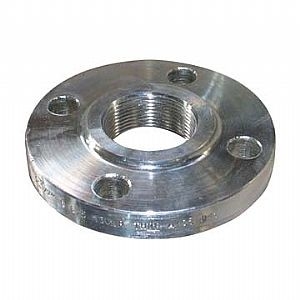

Hot Dipped Galvanized 600LB PN100 Threaded Flange Connection

Basic Information
Place of Origin: CHINA
Brand Name: HUAHAI
Certification: ISO9001
Model Number: 1/2''-64''
Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: plywood cases
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 100000pcs
Standard: BS 4504, EN 1092. Application: Industrial,Petroleum,DIY Furniture Decor,fittings And Connection,cosmetic
Material: Carbon Steel Pressure: PN150 (900LB
Surface Treatment: Golden Type: Thread Flange
High Light:

600lb threaded flange

,

F304 threaded flange

Thread Flange Manufacturer Hot Dipped Galvanized Threaded Flange, 600LB (PN100), ASTM A182 F304, F316, BS

Hot Dipped Galvanized 600LB PN100 Threaded Flange Connection 0

Key Specifications/Features

Type: Thread Flange, Threaded Flange.
Material: ASTM A182 F304/304L, F316/316L/F316H.
Standard: BS 4504, EN 1092.
Pressure: 600LB (PN100).
Size range: 1/2-6 Inch (DN15-DN150).
Coating: Galvanized, Hot Dipped.
Flange Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
of
Hub
Diameter of Raised Face Length Hub Thread Length Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
Approx. Weight
inch dn O C X G Y T BC BH BN BD KG/PCS LB/PCS
1/2" 15 95.5 14.2 38.1 35.1 22.4 22.4 66.5 15.7 4 1/2" 0.9 2
3/4" 20 117. 5 15.7 47.8 42.9 25.4 27.7 82.6 19.1 4 5/8" 1.4 3.1
1" 25 124. 0 17.5 53.8 50.8 26.9 34.5 88.9 19.1 4 5/8" 1.8 4
1-1/4" 32 133. 5 20.6 63.5 63.5 28.4 43.2 98.6 19.1 4 5/8" 2.3 5
1-1/2" 40 155. 5 22.4 69.9 73.2 31.8 49.5 114.3 22.4 4 3/4" 3.3 7.3
2" 50 165. 0 25.4 84.1 91.9 36.6 62 127 19.1 8 5/8" 4 8.8
2-1/2" 65 190. 5 28.4 100.1 104.6 41.1 74.7 149.4 22.4 8 3/4" 5.5 12.1
3" 80 209. 5 31.8 117.3 127 46 90.7 168.1 22.4 8 3/4" 7.4 16.3
3-1/2" 90 228. 5 35.1 133.4 139.7 49.3 103.4 184.2 25.4 8 7/8" 9.2 20.2
4" 100 273. 0 38.1 152.4 157.2 53.8 116.1 215.9 25.4 8 7/8" 16.8 37
5" 125 330. 0 44.5 189 185.7 60.5 143.8 266.7 28.4 8 1" 28.5 62.8
6" 150 355. 5 47.8 222.3 215.9 66.5 170.7 292.1 28.4 12 1" 36.2 79.8










Item Welding neck flanges,Plate flanges,Slip on flange,Blind flange,Threaded flange,Socket welding flange
Standard ANSI ANSI B16.5 ASME B16.47 series A/B
DIN DIN
GOST GOST 12820-80/ GOST 12821-80 /GOST 12822-80
EN EN1092-1:2002
JIS JIS B2220-2004,KS D3576, KS B6216 KS B1511-2007 JIS B2216;JIS B8210
BS BS4504 BS10 TABLE D/E
Size ANSI 1/2''-60''
DIN DN15-DN2000
GOST DN15-DN1600
EN DN15-DN2000
JIS 15A-1500A
BS DN15-DN2000
Material ANSI CS A105, 105N, SS304/304L, 316/316L, ALLOY STEEL:WHPY45/52/65/80
DIN SS304/304L, 316/316L, CS RST37.2, S235JR
GOST S304/304L ,316/316L ,CS CT20, 16MN ,
EN Q235, SS304/304L, 316/16L ,CS ,RST37.2 ,S235JR ,C22.8
JIS S304/304L ,316/316L, SS400, SF440
BS Q235SS, 304/304L ,316/316L, CSRST37.2, S235JR ,C22.8;
Pressure ANSI CLASS 150 ,300 ,600, 900, 1500, 2500
DIN PN6,10,16,25,40,64,100
GOST PN6,10,16,25,40,64,100
EN PN6,10,16,25,40,64,100
JIS 1K,2K,5K,10K,16K,20K,30K,40K
BS PN6,10,16,25,40,64,100
Surface Anti-rust,galvanizing,varnisg,color painting...etc
Usage Used for connection of all kinds of pipe line such as valves,pies...etc
Medium Water,gas,oli...etc
Our advantage Factory direct sales
Most competitive price and guaranteed quality
Strong production capacity and prompt delivery
Trial order are avialable
Good pre-sales service and after-sales service
