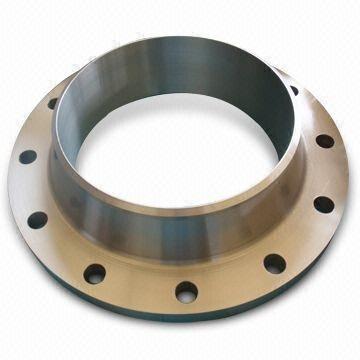

SS S31254 PN10 welded neck flange ASTM A182 F316H EN 1759 HG

Basic Information
Place of Origin: CHINA
Brand Name: HUAHAI
Certification: ISO9001
Model Number: 1/2''-8"
Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: plywood cases
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 100000pcs
Standard: EN 1759, HG 20595 Material: ASTM A182, Stainless Steel.
Pressure: PN10 Certificate: ISO9001
Size: DN15-DN200 (1/2-8 Inch). Type: Welded Neck Flange
Grades: F316H, S31254.
High Light:

PN10 Welded Neck Flange

,

ASTM A182 Welded Neck Flange

,

F316H Welded Neck Flange





Directions for the designation d1 a b D f h h1 m r s Holes Screws Weight*
Rated External diameter Kg
Diameter of the flange
15 20 21 55 12 80 11 30 6 28 4 2,5 4 M 10 0,45
21,3 22,5 30 0,45
20 25 26 65 14 90 11 32 6 35 4 2,5 4 M 10 0,66
26,9 28 38 0,66
25 30 31 75 14 100 11 35 6 40 4 2,8 4 M 10 0,83
33,7 34,5 42 0,82
32 38 39 90 14 120 14 35 6 50 6 3 4 M 12 1,18
42,4 43,5 55 1,16
40 44,5 45,5 100 14 130 14 38 7 58 6 3 4 M 12 1,40
48,3 49,5 62 1,38
50 57 58 110 14 140 14 38 8 70 6 3,5 4 M 12 1,58
60,3 61,5 74 1,56
65 76,1 77 130 14 160 14 38 9 88 6 3,5 4 M 12 1,95
80 88,9 90 150 16 190 18 42 10 102 8 3,7 4 M 16 3,07
100 108 109 170 16 210 18 45 10 122 8 3,7 4 M 16 3,68
114,3 115,5 130 3,56
125 133 134 200 18 240 18 48 10 148 8 4 8 M 16 5,04
139,7 141 155 4,80
150 159 161 225 18 265 18 48 12 172 10 5 8 M 16 5,75
168,3 170,5 184 5,52
175 193,7 195,5 255 20 295 18 52 12 208 10 5 8 M 16 7,22
200 219,1 221 280 20 320 18 55 15 236 10 5 8 M 16 8,16
