| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/2"-1" |
| Minimum Order Quantity: | 100pcs |
| Price: | 1-15USD |
| Packaging Details: | box-pallet |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs |
| Technics: | Casting | Material: | Malleable Iron |
|---|---|---|---|
| Specification: | 1/2"-6" | Connection: | Female |
| Type: | Union | Shape: | Round |

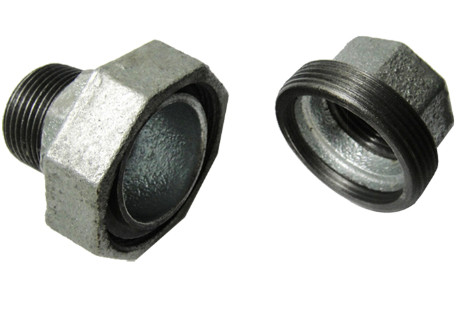

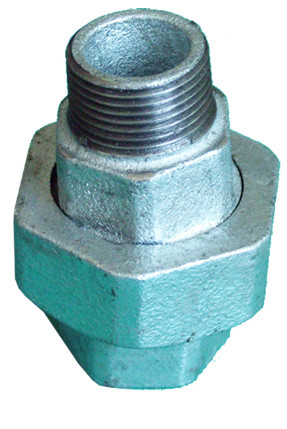

| Thread Type: | BS, DIN ,NPT | Name: | Hydraulic 1/2" Malleable Iron Pipe Fitting Galvanized Brass Seat Union |
| High Light: | hydraulic malleable iron pipe fitting,casting malleable iron pipe fitting,1/2" malleable iron union |
||
|
Malleable Iron Pipe Fitting Features:
|
|||
|
Size
|
1/8"-6"
|
||
|
Finishing
|
Hot Dipped Galvanized, Electro Galvanized, Epoxy, Black
|
||
|
Threads
|
DIN, BS, NPT, G Thread, Metric
|
||
|
Shape
|
Banded, Beaded, Plain
|
||
|
Ribs
|
with Rib or without Rib
|
||
|
Brand
|
O,Q,HG,HE,BT
|
||
|
Pressure
|
Class 150, Class 300, PN10, PN16
|
||
|
Weight
|
Heavy, Standard, Medium, and Light
|
||
|
Usage
|
Convey Water, Oil, Gas, Steam and so on
|
||
|
Malleable Iron Materials
|
KTH 350~10, KTH 300~06, KTH 330-08 Black Heart
|
||
|
Malleable Iron Pipe Fitting Standards:
|
||||
|
British standard
|
American standard
|
DIN standard
|
||
|
Materials:ISO5922
|
Materials:ANSI/ASME/A197-79
|
Material:DIN1692
|
||
|
Dimension:ISO49
|
Dimensions:ANSI/ASME B16.3-85
|
Dimensions:DIN2950
|
||
|
Threads:ISO7/1
|
Threads:ANSI/ASME B1.20.1
|
Thread:DIN 2999
|
||
|
Malleable Iron Pipe FittingTechnial Details:
|
|||
|
Mechanical Properties
|
Tensile Strength ≥ 330MPa
Elongation ≥ 8% Hardness < 163 |
||
|
Hydraulic Test
|
Working Pressure: Max 1.5MPa
Test Pressure: Max 2.5MPa |
||
|
Temperature:
|
-20 ~ 120 °c
|
||
