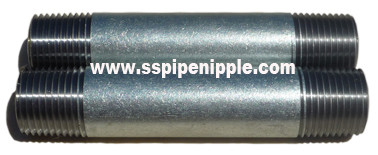

Galvanized Pipe Nipple BSPT

Basic Information
Place of Origin: China
Brand Name: HUAHAI
Model Number: 1/8---8"
Minimum Order Quantity: 1000pcs
Price: 1.5-5.5usd
Packaging Details: Loaded into cartons then into pallets
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000000pcs
Thickness: Light/Medium/Heavy Grade: Q235,Q195,20#
Length: 30mm--3000mm Material: Seamless/Welded
High Light:

galvanized steel pipe nipple

,

erw carbon steel pipe

DIN 2982 STANDARD STEEL PIPE NIPPLES

Material: For Running Nipples, Seamless or welded steel tubes according to DIN2441, For Barrel Nipples, seamless or welded steel tubes DIN2440,

Thread: Running Nipples, DIN259; Barrel Nipples, DIN 2999.

Finish: Black, Galvanized and Hot-Dipped

BS EN10241 STANDARD STEEL PIPE NIPPLES

Material: Seamless or welded steel tubes accouding to BS 1387.

Thread: ISO 7/1 or BS 21.

Finish: Black, Galvanized and Hot-Dipped

Galvanized Pipe Nipple BSPT 0 Galvanized Pipe Nipple BSPT 1



Size Threaded Tube DIN2440 Threaded Tube BS 1387 Length
O.D. Wall thickness O.D. B, mm Wall thickness S, mm Running nipples Barrel nipples
DN inch B, mm S, mm Light Medium / Heavy Light Medium Heavy L,mm L, mm
6 1/8 10.2 2.0 10.2 10.2 1.6 2.0   16 30mm – 3000mm
8 1/4 13.5 2.35 13.6 13.9 1.8 2.3 2.9 18 30mm – 3000mm
10 3/8 17.2 2.35 17.1 17.4 1.8 2.3 2.9 22 30mm – 3000mm
15 1/2 21.3 2.65 21.4 21.7 2.0 2.6 3.2 25 30mm – 3000mm
20 3/4 26.9 2.65 26.9 27.2 2.3 2.6 3.2 30 30mm – 3000mm
25 1 33.7 3.25 33.8 34.2 2.6 3.2 4.0 35 30mm – 3000mm
32 11/4 42.4 3.25 42.5 42.9 2.6 3.2 4.0 38 30mm – 3000mm
40 11/2 48.3 3.25 48.4 48.8 2.9 3.2 4.0 38 30mm – 3000mm
50 2 60.3 3.65 60.2 60.8 2.9 3.6 4.5 45 30mm – 3000mm
65 21/2 76.1 3.65 76.0 76.6 3.2 3.6 4.5 55 30mm – 3000mm
80 3 88.9 4.05 88.7 89.5 3.2 4.0 5.0 60 30mm – 3000mm
100 4 114.3 4.5 113.9 114.9 3.6 4.5 5.4 70 30mm – 3000mm
125 5 139.7 4.85   139.7   5.0 5.4 85 30mm – 3000mm
150 6 165.1 4.85   165.1   5.0 5.4 100 30mm – 3000mm
