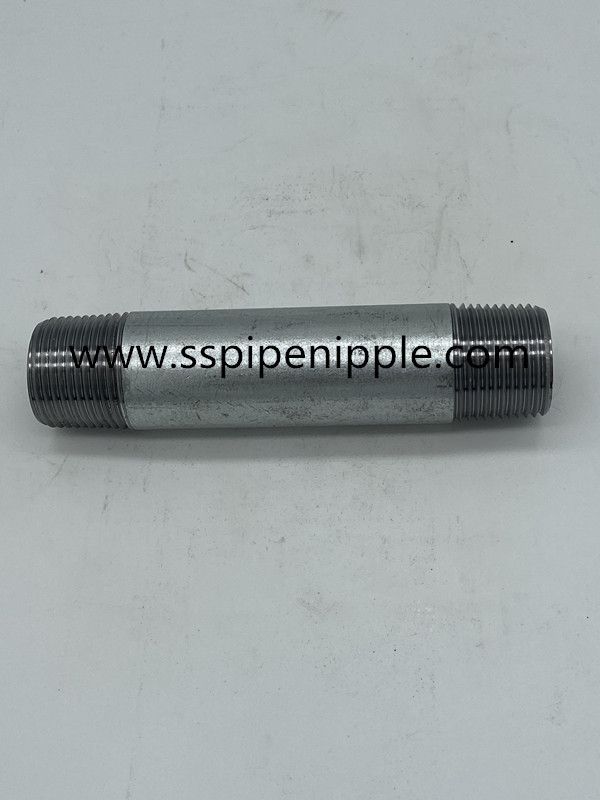

Threaded Carbon Steel Pipe Nipples 1/8" To 8" NPT DIN2999 ISO7/1 ISO228-1

Basic Information
Place of Origin: China
Brand Name: HUAHAI
Certification: ISO
Model Number: 1/8---8"
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Loaded into cartons then into pallets
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000000pcs
Thickness: Light/Medium/Heavy Grade: Q235,Q195,20#
Length: 30mm--3000mm Or According To Customers' Request Material: Seamless / Seam
Surface Treatment: Black/Galvanized/Hot-dipped Connection: Male
High Light:

galvanized steel pipe nipple

,

black steel nipple

1/8" To 8" NPT, DIN2999,ISO7/1, ISO228-1 Threaded Carbon Steel Pipe Nipples

Material: carbon steel A53,A106,ST37,Q235 etc( stainless steel is also available)

Pipe :welded or seamless steel pipes

Standard: ASTM A53/ ASTM A106/ ASTM A733/EN10241

Threads: ANSI B1.20.1; NPT, DIN2999,ISO7/1, ISO228-1

Techonology: Machining

Type: Barrel nipple, Welding nipple, Close Nipple, Running nipple

Size: OD: 1/8"-8"

Length: according to customers' request

Wall thickness: SCH40.80.160.XXS

Surface: black or galvanized

Packing: in cartons then on pallets

Certificates: ISO9001:2008

Application: Steam,Air,Gas and Oil pipes or for many other fluids

Threaded Carbon Steel Pipe Nipples 1/8" To 8" NPT  DIN2999 ISO7/1  ISO228-1 0 Threaded Carbon Steel Pipe Nipples 1/8" To 8" NPT  DIN2999 ISO7/1  ISO228-1 1



Size Threaded Tube DIN2440 Threaded Tube BS 1387 Length
O.D. Wall thickness O.D. B, mm Wall thickness S, mm Running nipples Barrel nipples
DN inch B, mm S, mm Light Medium / Heavy Light Medium Heavy L,mm L, mm
6 1/8 10.2 2.0 10.2 10.2 1.6 2.0   16 30mm – 3000mm
8 1/4 13.5 2.35 13.6 13.9 1.8 2.3 2.9 18 30mm – 3000mm
10 3/8 17.2 2.35 17.1 17.4 1.8 2.3 2.9 22 30mm – 3000mm
15 1/2 21.3 2.65 21.4 21.7 2.0 2.6 3.2 25 30mm – 3000mm
20 3/4 26.9 2.65 26.9 27.2 2.3 2.6 3.2 30 30mm – 3000mm
25 1 33.7 3.25 33.8 34.2 2.6 3.2 4.0 35 30mm – 3000mm
32 11/4 42.4 3.25 42.5 42.9 2.6 3.2 4.0 38 30mm – 3000mm
40 11/2 48.3 3.25 48.4 48.8 2.9 3.2 4.0 38 30mm – 3000mm
50 2 60.3 3.65 60.2 60.8 2.9 3.6 4.5 45 30mm – 3000mm
65 21/2 76.1 3.65 76.0 76.6 3.2 3.6 4.5 55 30mm – 3000mm
80 3 88.9 4.05 88.7 89.5 3.2 4.0 5.0 60 30mm – 3000mm
100 4 114.3 4.5 113.9 114.9 3.6 4.5 5.4 70 30mm – 3000mm
125 5 139.7 4.85   139.7   5.0 5.4 85 30mm – 3000mm
150 6 165.1 4.85   165.1   5.0 5.4 100 30mm – 3000mm
