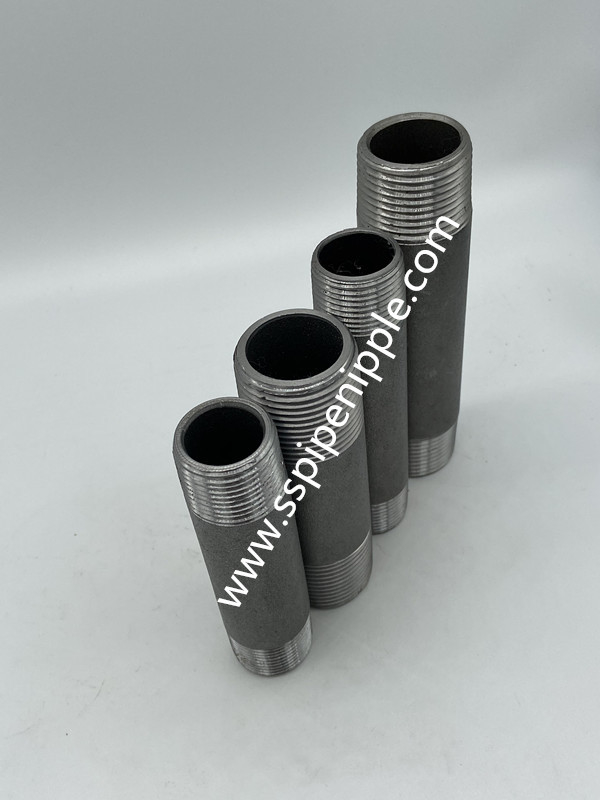

Thickness: | Light/Medium/Heavy | Grade: | Q235,Q195,20# |
---|---|---|---|
Length: | 30mm--3000mm | Material: | Seamless / Seam |
Surface Treatment: | Black/Galvanized/Hot-dipped | Connection: | Male |
High Light: | galvanized steel pipe nipple,erw carbon steel pipe |
Size | Threaded Tube DIN2440 | Threaded Tube BS 1387 | Length | |||||||
O.D. | Wall thickness | O.D. B, mm | Wall thickness S, mm | Running nipples | Barrel nipples | |||||
DN | inch | B, mm | S, mm | Light | Medium / Heavy | Light | Medium | Heavy | L,mm | L, mm |
6 | 1/8 | 10.2 | 2.0 | 10.2 | 10.2 | 1.6 | 2.0 | 16 | 30mm – 3000mm | |
8 | 1/4 | 13.5 | 2.35 | 13.6 | 13.9 | 1.8 | 2.3 | 2.9 | 18 | 30mm – 3000mm |
10 | 3/8 | 17.2 | 2.35 | 17.1 | 17.4 | 1.8 | 2.3 | 2.9 | 22 | 30mm – 3000mm |
15 | 1/2 | 21.3 | 2.65 | 21.4 | 21.7 | 2.0 | 2.6 | 3.2 | 25 | 30mm – 3000mm |
20 | 3/4 | 26.9 | 2.65 | 26.9 | 27.2 | 2.3 | 2.6 | 3.2 | 30 | 30mm – 3000mm |
25 | 1 | 33.7 | 3.25 | 33.8 | 34.2 | 2.6 | 3.2 | 4.0 | 35 | 30mm – 3000mm |
32 | 11/4 | 42.4 | 3.25 | 42.5 | 42.9 | 2.6 | 3.2 | 4.0 | 38 | 30mm – 3000mm |
40 | 11/2 | 48.3 | 3.25 | 48.4 | 48.8 | 2.9 | 3.2 | 4.0 | 38 | 30mm – 3000mm |
50 | 2 | 60.3 | 3.65 | 60.2 | 60.8 | 2.9 | 3.6 | 4.5 | 45 | 30mm – 3000mm |
65 | 21/2 | 76.1 | 3.65 | 76.0 | 76.6 | 3.2 | 3.6 | 4.5 | 55 | 30mm – 3000mm |
80 | 3 | 88.9 | 4.05 | 88.7 | 89.5 | 3.2 | 4.0 | 5.0 | 60 | 30mm – 3000mm |
100 | 4 | 114.3 | 4.5 | 113.9 | 114.9 | 3.6 | 4.5 | 5.4 | 70 | 30mm – 3000mm |
125 | 5 | 139.7 | 4.85 | 139.7 | 5.0 | 5.4 | 85 | 30mm – 3000mm | ||
150 | 6 | 165.1 | 4.85 | 165.1 | 5.0 | 5.4 | 100 | 30mm – 3000mm |
