| Place of Origin: | China |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8---6" |
| Minimum Order Quantity: | 1000pcs |
| Price: | 1.5-5.5usd |
| Packaging Details: | Loaded into cartons then into pallets |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000pcs |
| Thickness: | Light/Medium/Heavy | Grade: | Q235,Q195,20# |
|---|---|---|---|
| Length: | 30mm--3000mm | Material: | Seamless/Welded |
| Highlight: | carbon steel pipe fittings,carbon steel pipe and fittings |
||

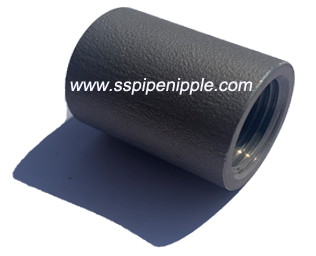

Black medium carbon steel socket DIN2999
Products: steel pipe nipples.
Feature: Steel Pipe Nipples are made from ERW pipes or Seamless Steel Pipes. All nipples are made according to standard of BS1387, ANSI/ASTM A 733 and DIN 2982.
Size suppliable from 1/8" to 6"
| STEEL MERCHANT COUPLING/SOCKET DETAILS | ||
| Material | 1.Carbon steel, 2.Stainless steel | |
| British Standard | Threads:BS21 | |
| DIN standard | Threads: DIN2999 | |
| American Standard | Threads:ASTM A865-9 | |
| Hydraulic Test | Working Pressure: Max 1.5MPa | |
| Test Pressure: Max 2.5MPa | ||
| Temperature: | -20 ~ 120°c | |
| Model | Half coupling/socket, full coupling/socket | |
| Surface | Galvanized Electro galvanised Normal black/Shining black |
|
| Size | OD | 1/8-6" |
| Wall Thickness | 0.5mm-10mm | |
| SCH20,SCH30,SCH40,SCH80,SCH100.SCH120,SCH160,STD,XS,XXS,CLASS A, CLASS B, CLASS C, etc. | ||
| Length | Less than 12m or as buyer's requirements | |
| Series | Heavy series, Standard series, Medium series, Light series | |
| Connection | Female | |
| Shape | Equal | |
| Application | fittings are widely used connected to the pipes with water,oil ,gas and so on. | |
| Customers' drawings or designs are available. | ||
| Package | 1. Cartons Without Pallets. 2. Cartons With Pallets. Or as buyer's requirements. |
|
| Delivery detail | According to the quantities and specifications of each order. Normal delivery time is from 30 to 45 days after receiving the deposit. |
|
