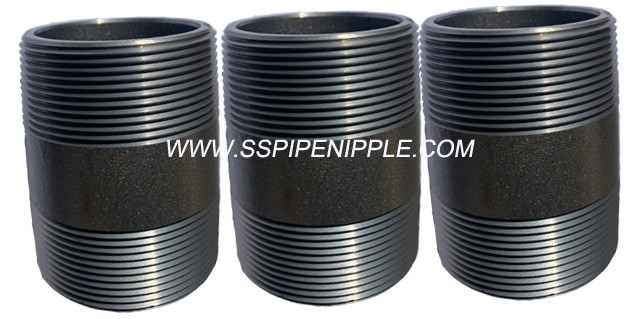

Equal Shape Niple Negro Rosc 3/4" X 4" Anti Rust Long Working Life

Basic Information
Place of Origin: CHINA
Brand Name: HUAHAI
Certification: ISO9001
Model Number: 1/8"--8"
Minimum Order Quantity: 1000PCS
Price: 0.1-8USD
Packaging Details: BOX-PALLET
Delivery Time: 30DAYS
Payment Terms: T/T
Supply Ability: 100000PCS
Technics: Casting Shape: Equal
Material: ASTM A53 Surface: Black
Connection: Male Usage: Gas Or Water
High Light:

galvanized steel pipe nipple

,

erw carbon steel pipe



Schedule 40 Welded Steel Pipe Nipples - Black

Material: ASTM A53/A53M, ERW type, Grade B
Dimensions: ASTM A733
Threads: ASME B1.20.1
Approvals: NSF61, NSF372
Available: 1/8” through 8” diameters



NIPLE NEGRO CEDULA40 ROSC 3/4" X 4" NPT ANSI/ASME B1.20.1

Niple Negro
Extremos roscados cumplen con ANSI/SEME B1.20.1
Longitudes cumplen con ASTM A733
Material cumple con ASTM A53
Concidad 1.5 grados
La Longitud de la rosca varia en los niples de rosca corrida



NORMA ANSI B1.20.1 ROSCADO
  PASO (HILOS POR PULG.) No. HILOS (D) GAGES
DIÁMETRO DEL TUBO
    MIN. NOM. MAX. HILOS
1/8 ” 27 9.6 10.6 11.6 +/- 1
1/4 ” 18 9.7 10.7 11.7 +/- 1
3/8 ” 18 9.8 10.8 11.8 +/- 1
1/2 ” 14 9.9 10.9 11.9 +/- 1
3/4 ” 14 10.1 11.1 12.1 +/- 1
1 ” 11.5 10.3 11.3 12.3 +/- 1
1 1/4 ” 11.5 10.6 11.6 12.6 +/- 1
1 1/2 ” 11.5 10.8 11.8 12.8 +/- 1
2 ” 11.5 11.2 12.2 13.2 +/- 1
2 1/2 ” 8 11.6 12.6 13.6 +/- 1
3 ” 8 12.1 13.1 14.1 +/- 1
4 ” 8 12.9 13.9 14.9 +/- 1





Equal Shape Niple Negro  Rosc 3/4" X 4"  Anti Rust Long Working Life 0





Q1: Can I have my own customized product?

A: Yes, your customized requirements for color, size, package, mark, etc.

Q2: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
