| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"--8" |
| Minimum Order Quantity: | 1000PCS |
| Price: | 0.1-8USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS |
| Technics: | Casting | Shape: | Equal |
|---|---|---|---|
| Material: | ASTM A53 | Surface: | Black Or Hot Galvanized |
| Connection: | Male | Usage: | Gas Or Oil |
| High Light: | galvanized steel pipe nipple,black steel nipple |
||

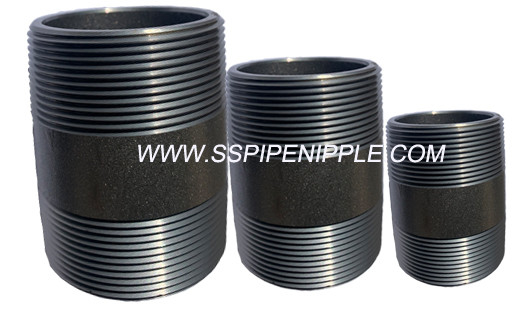

Schedule 40 Welded Steel Pipe Nipples - Black
Material: ASTM A53/A53M, ERW type, Grade B
Dimensions: ASTM A733
Threads: ASME B1.20.1
Approvals: NSF61, NSF372
Available: 1/8” through 8” diameters
Niple Negro Cedula 40 Rosc 1" X 4" Npt Ansi/Asme B1.20.1
| Niple Negro | |||||||
| Extremos roscados cumplen con ANSI/SEME B1.20.1 | |||||||
| Longitudes cumplen con ASTM A733 | |||||||
| Material cumple con ASTM A53 | |||||||
| Concidad 1.5 grados | |||||||
| La Longitud de la rosca varia en los niples de rosca corrida |
| NORMA ANSI B1.20.1 ROSCADO | |||||
| PASO (HILOS POR PULG.) | No. HILOS (D) | GAGES | |||
| DIÁMETRO DEL TUBO | |||||
| MIN. | NOM. | MAX. | HILOS | ||
| 1/8 ” | 27 | 9.6 | 10.6 | 11.6 | +/- 1 |
| 1/4 ” | 18 | 9.7 | 10.7 | 11.7 | +/- 1 |
| 3/8 ” | 18 | 9.8 | 10.8 | 11.8 | +/- 1 |
| 1/2 ” | 14 | 9.9 | 10.9 | 11.9 | +/- 1 |
| 3/4 ” | 14 | 10.1 | 11.1 | 12.1 | +/- 1 |
| 1 ” | 11.5 | 10.3 | 11.3 | 12.3 | +/- 1 |
| 1 1/4 ” | 11.5 | 10.6 | 11.6 | 12.6 | +/- 1 |
| 1 1/2 ” | 11.5 | 10.8 | 11.8 | 12.8 | +/- 1 |
| 2 ” | 11.5 | 11.2 | 12.2 | 13.2 | +/- 1 |
| 2 1/2 ” | 8 | 11.6 | 12.6 | 13.6 | +/- 1 |
| 3 ” | 8 | 12.1 | 13.1 | 14.1 | +/- 1 |
| 4 ” | 8 | 12.9 | 13.9 | 14.9 | +/- 1 |
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
