| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUAHAI |
| Certification: | ISO9001 |
| Model Number: | 1/8"--8" |
| Minimum Order Quantity: | 1000PCS |
| Price: | 0.1-8USD |
| Packaging Details: | BOX-PALLET |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS |
| Technics: | Casting | Shape: | Equal |
|---|---|---|---|
| Material: | Carbon Steel Pipes ASTMA53 | Surface: | Galvanized |
| Grade: | Q345, Q235, 20#, 10#, Q195 | Length: | 1-12m Customer Size Is Ok |
| High Light: | galvanized steel pipe nipple,black steel nipple |
||

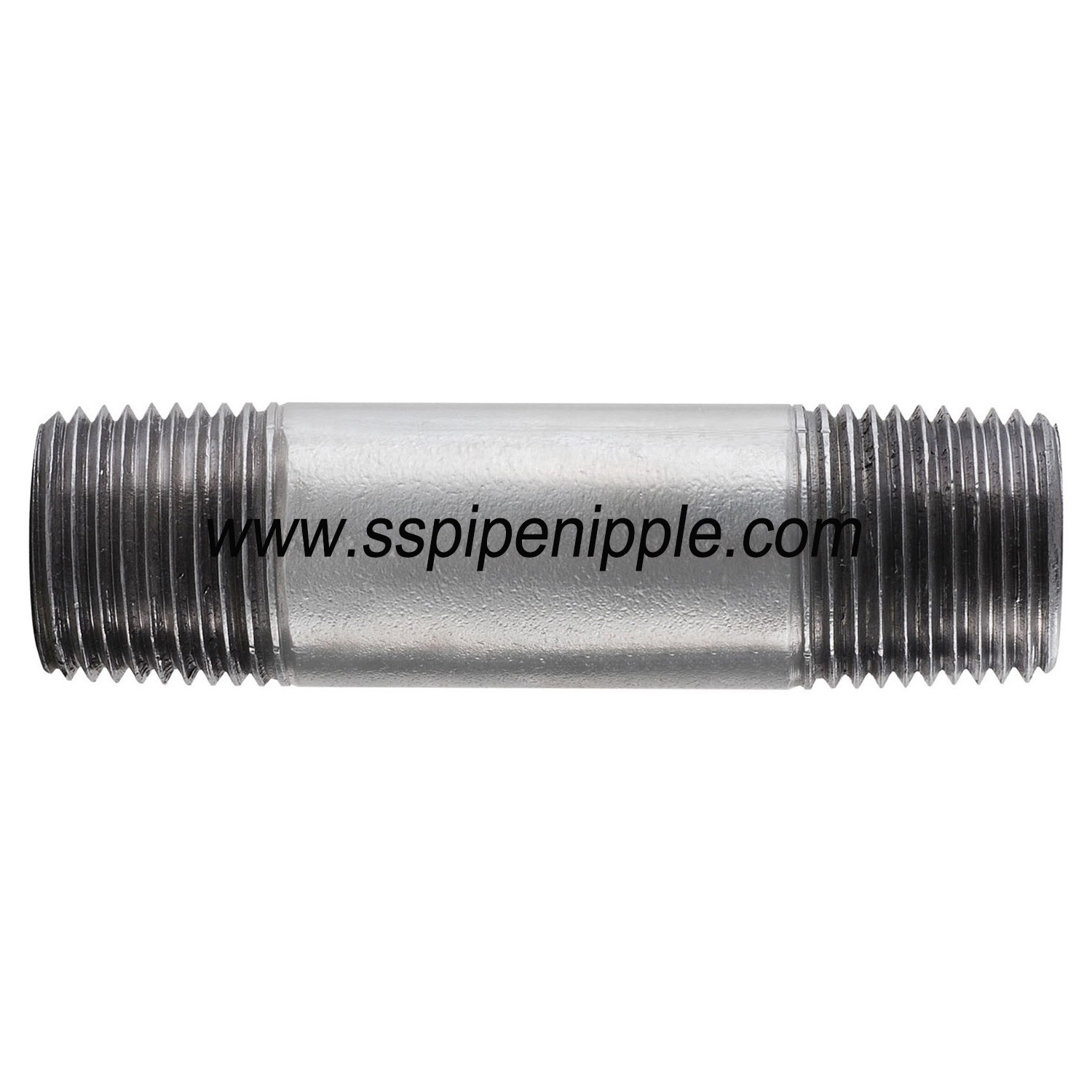

Schedule 40 Welded Steel Pipe Nipples - Galvanized
Material: ASTM A53/A53M, ERW type, Grade B
Dimensions: ASTM A733
Threads: ASME B1.20.1
Approvals: NSF61, NSF372
Available: 1/8” through 8” diameters
NIPLE GALVANIZADO CEDULA40 /SCH40 DE 1/2" X 4" ANSI/ASME B1.20.1
| Niple GALVANIZADO | |||||||
| Extremos roscados cumplen con ANSI/SEME B1.20.1 | |||||||
| Longitudes cumplen con ASTM A733 | |||||||
| Material cumple con ASTM A53 | |||||||
| Concidad 1.5 grados | |||||||
| La Longitud de la rosca varia en los niples de rosca corrida |
| TIPO DE NIPLES POR LONGITUD (C) | ||||||||||||
| TAMAÑO NOMINAL (PULGADAS) | ||||||||||||
| TIPO DE NIPLE | 1/8" | 1/4" | 3/8“ | 1/2" | 3/4" | 1" | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| ROSCA CORRIDA | 3/4" | 7/8" | 1 | 1 1/8 | 1 3/8 | 1 1/2 | 1 5/8 | 1 3/4 | 2 | 2 1/2 | 2 5/8 | 2 7/8 |
| LONGITUD DEL NIPLE | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | |||||||
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | 2 1/2 | ||||
| 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | ||
| 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | |
| 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | |
| 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
