Thickness: | Light/Medium/Heavy | Grade: | Q235,Q195,20# |
---|---|---|---|
Length: | 30mm--3000mm | Material: | Seamless / Seam |
Surface Treatment: | Black/Galvanized/Hot-dipped | Connection: | Male |
High Light: | galvanized steel pipe nipple,black steel nipple |
Material | 1. Carbon steel 2. Stainless steel |
British Standard | Threads:BS21 |
DIN Standard | Threads:DIN2999 |
American Standard | Threads:ASTM A865, ASTM A733 |
Hydraulic Test | Test Pressure: Max2.5MPa |
Working Pressure: Max2.5MPa | |
Model | Thread both end nipple, thread one end nipple, close/full nipple |
Surface | 1. Galvanized 2. Electro galvanised 3. normal black 4. sand blasting |
Size | OD:1/8''-6'' |
WT: SCH20, SCH40, SCH80, SCH160, STD, xs, xxs, CLASS A, CLASS B, CLASS C etc | |
Length: Standard or Special | |
Series | Heavy series, Standard series, Mediun series, Light series |
Connection | Male |
Shape | Equal |
Certificate | ISO |
Customers' drawing or designs are available. |

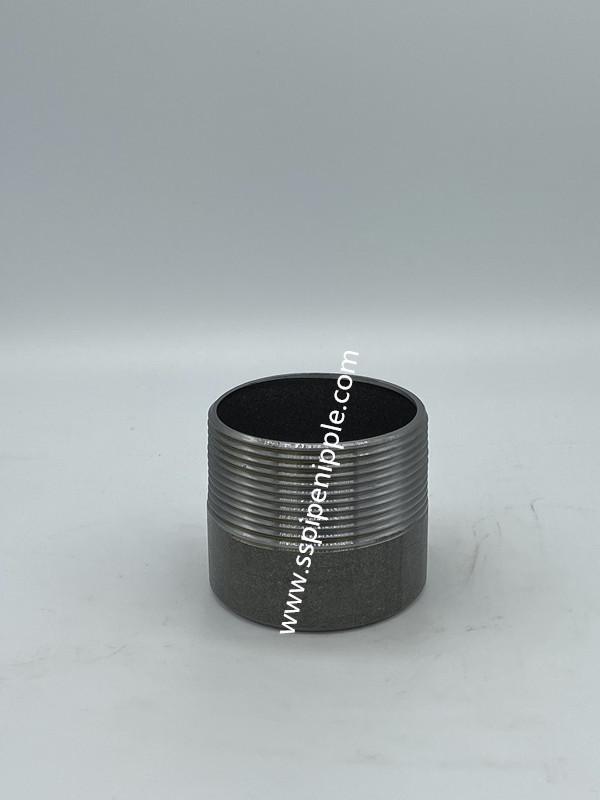

Pipe nipple has been widely used in industry.
Such as: 1. For use with residential gas, air and lp supply.
2. Male National Pipe Taper threads on both ends for connecting female threaded pipes and fittings
3. Nipple for joining two pipes or extending pipe length.
